5322G-010

24-HOUR ALARM

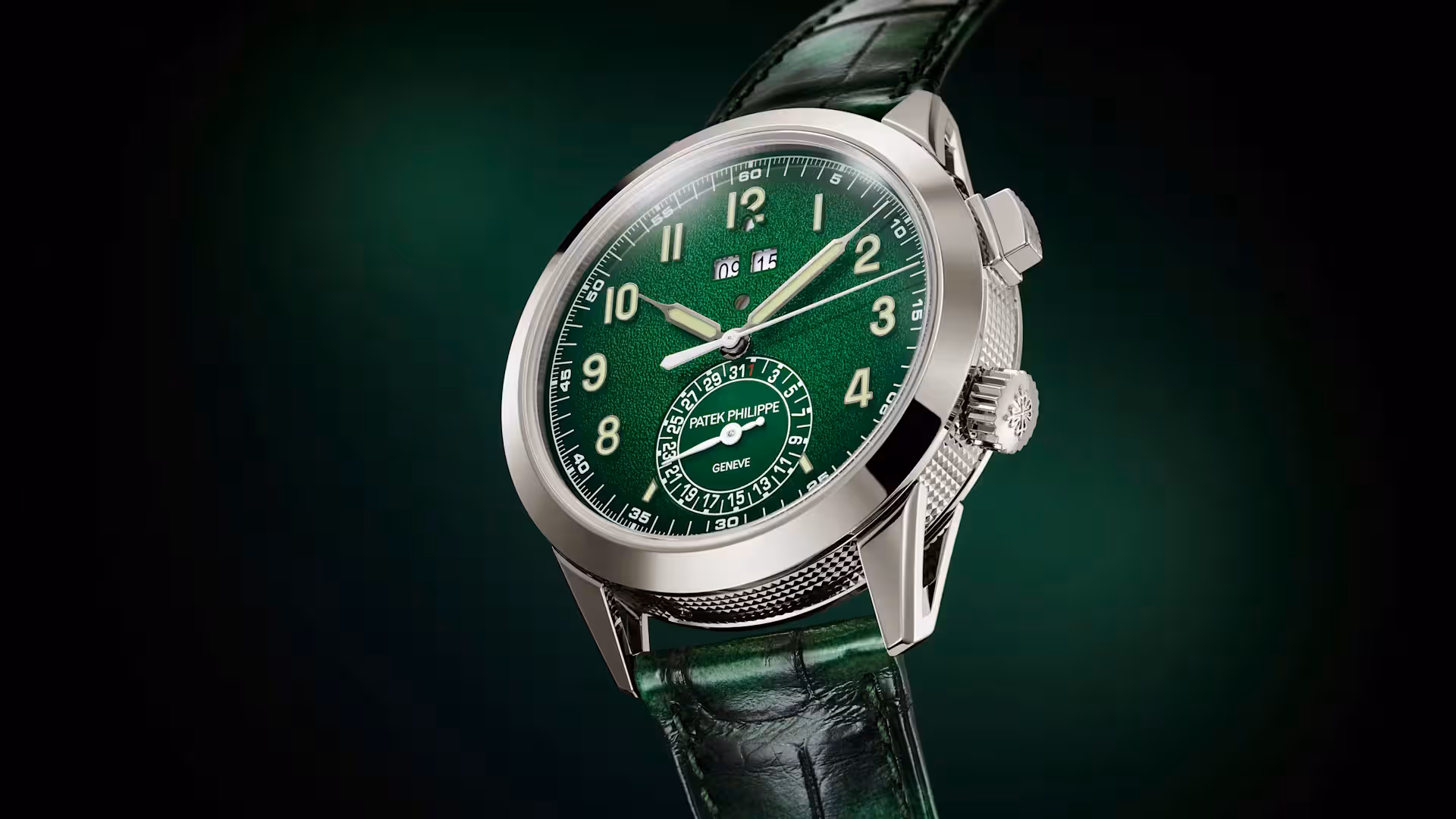

A Calatrava with a 24-hour alarm

A Grand Complication equipped with a 24-hour alarm function enabling the user to set the alarm in an intuitive way. The white gold case bearing a hobnail pattern frames an exceptionally refined textured green lacquered dial. The alarm function of self-winding AL 30-660 S C caliber chimes elegantly, with a single hammer striking a classic gong.

Grand Complications

5322G-010

6689000

No items found.

Technical characteristics

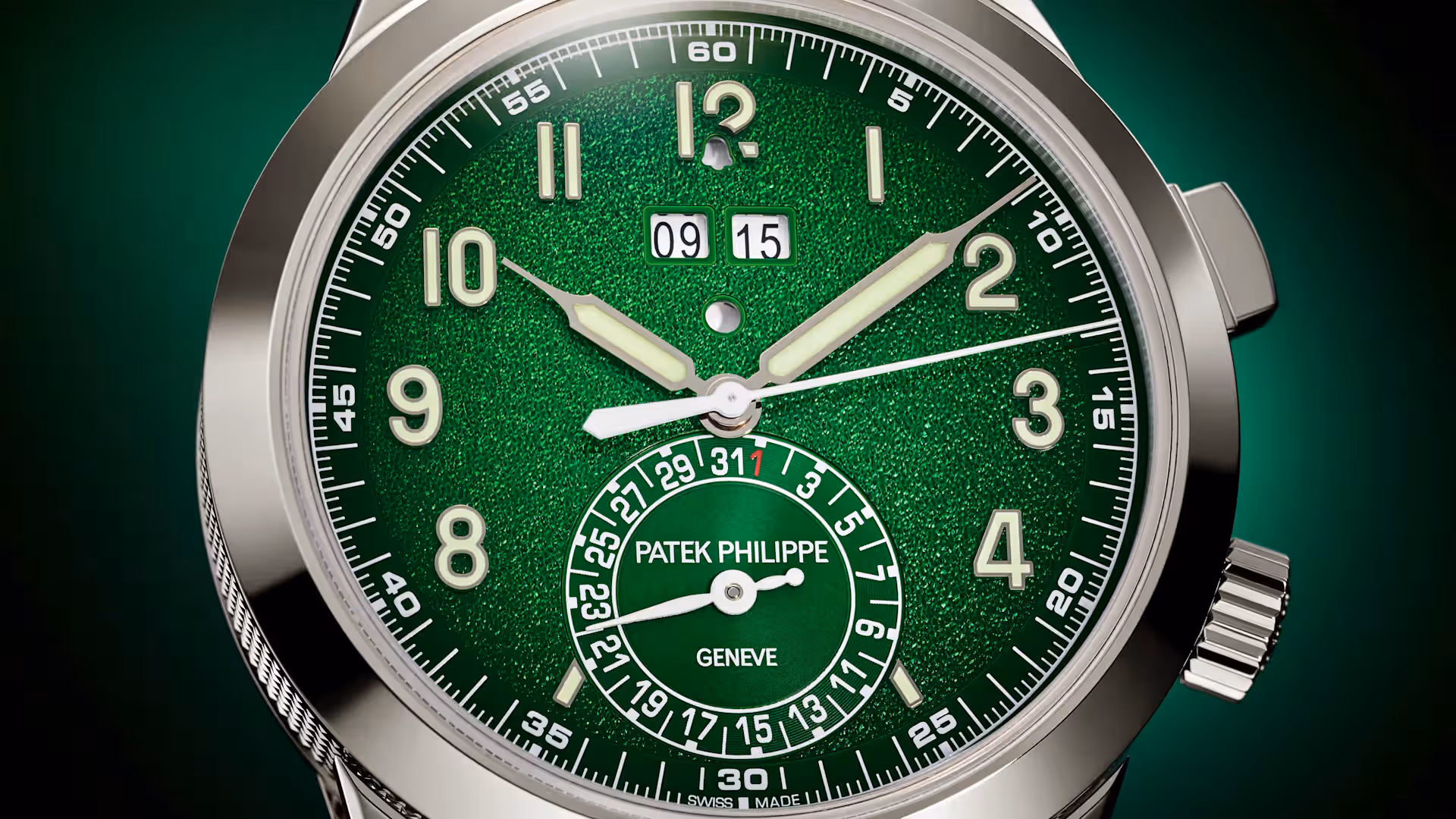

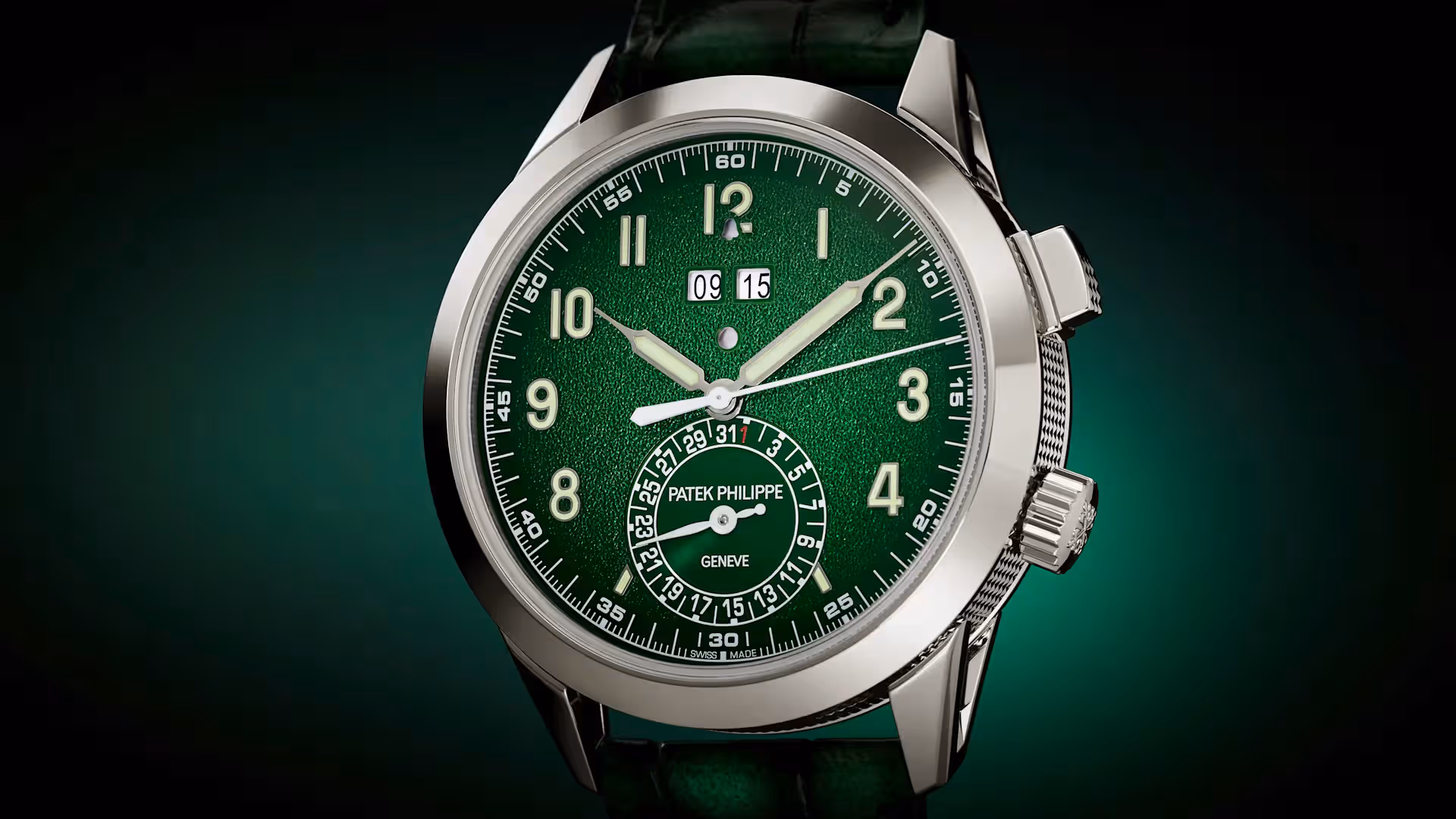

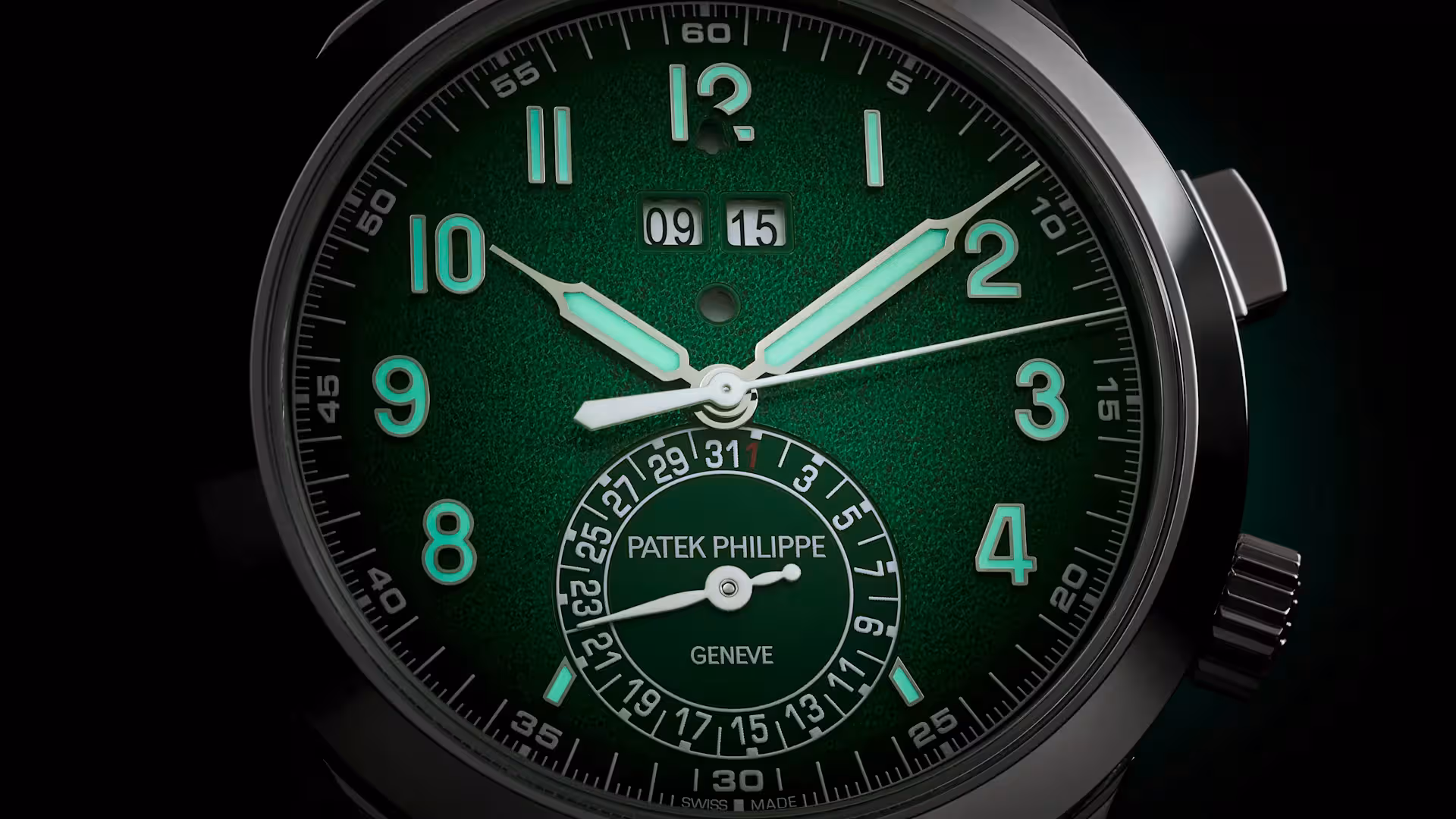

dial

Textured lacquered green with black-gradient rim, white gold applied numerals with luminescent coating.
White gold syringe-shaped hands with luminescent coating.

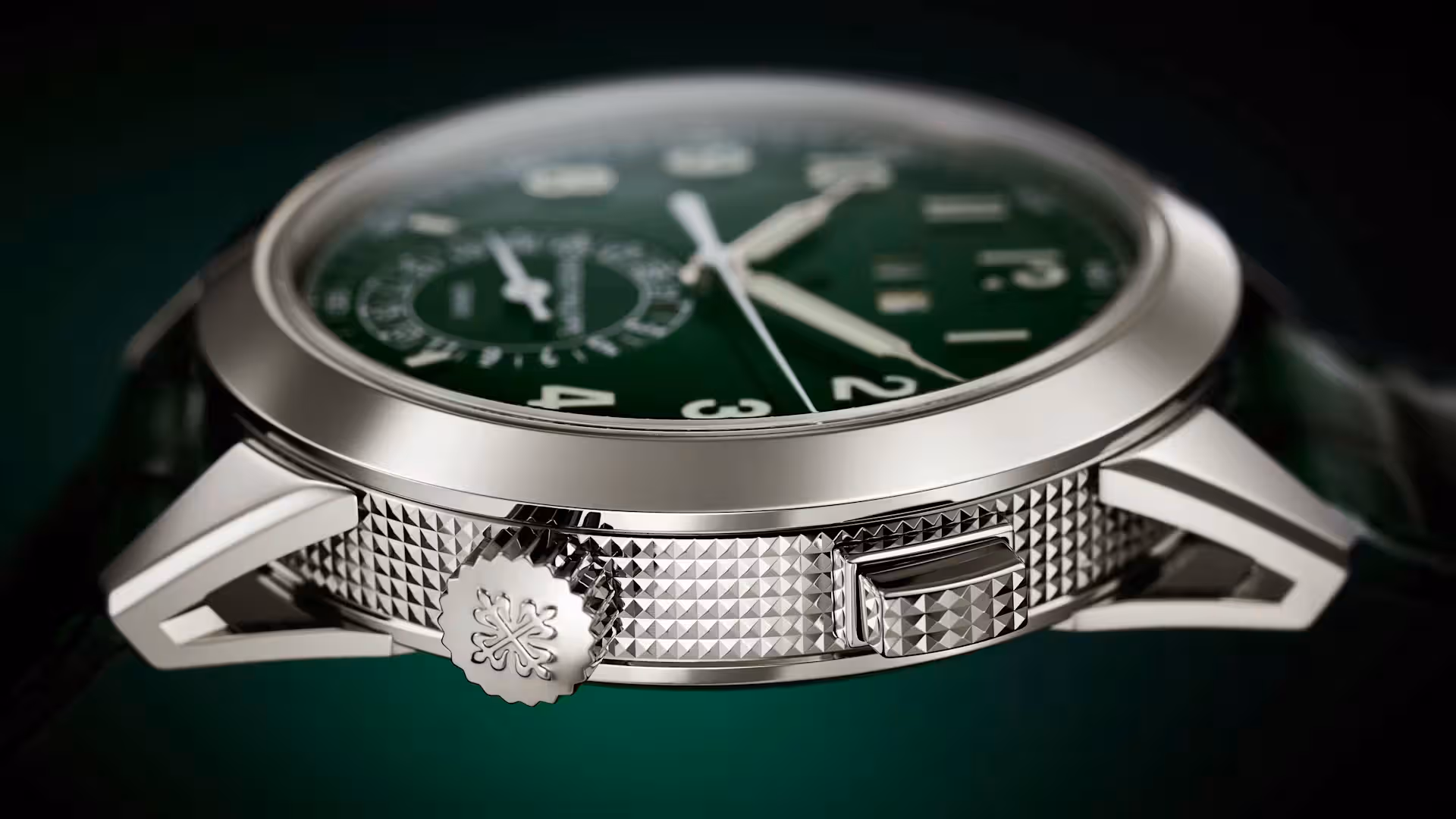

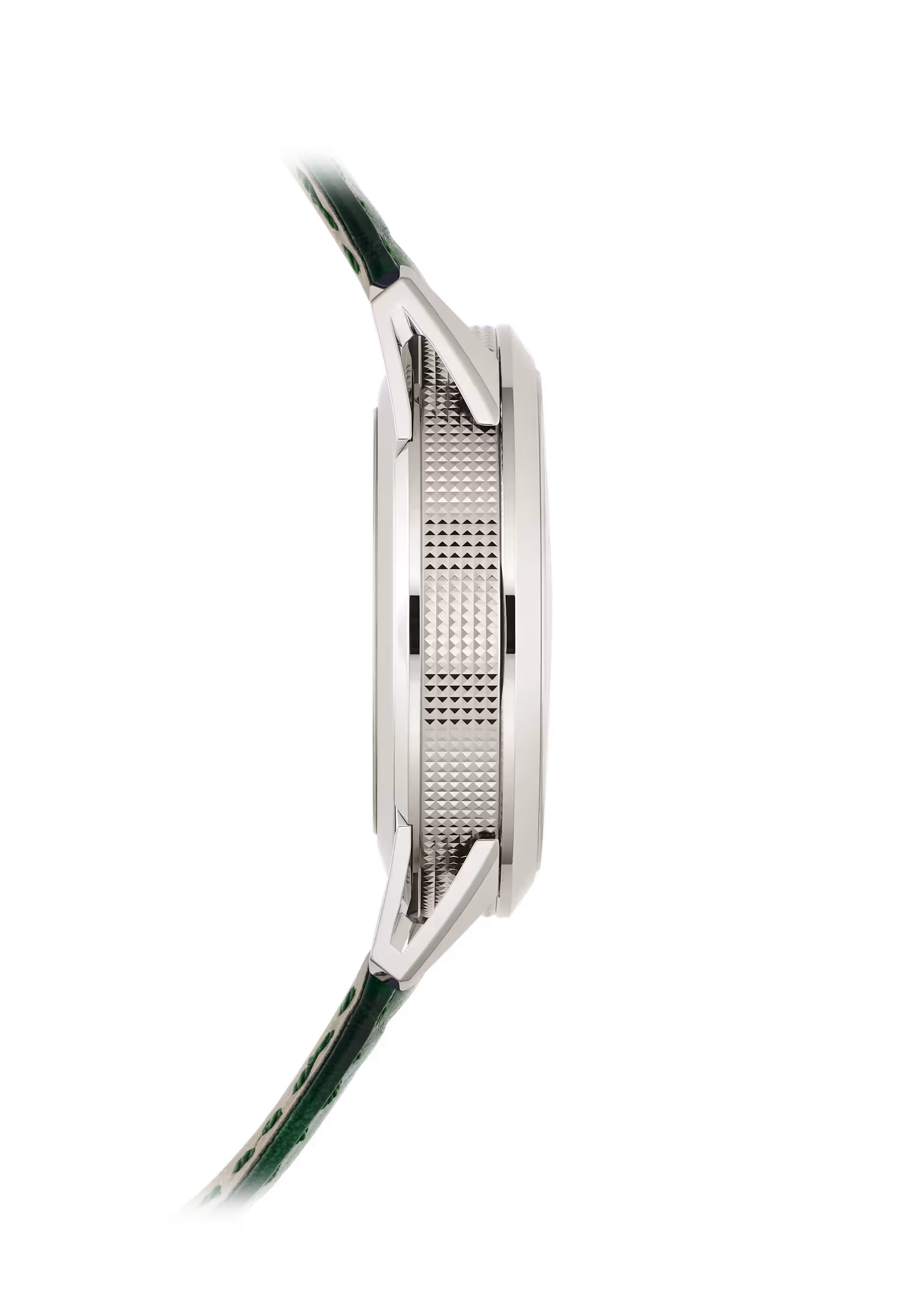

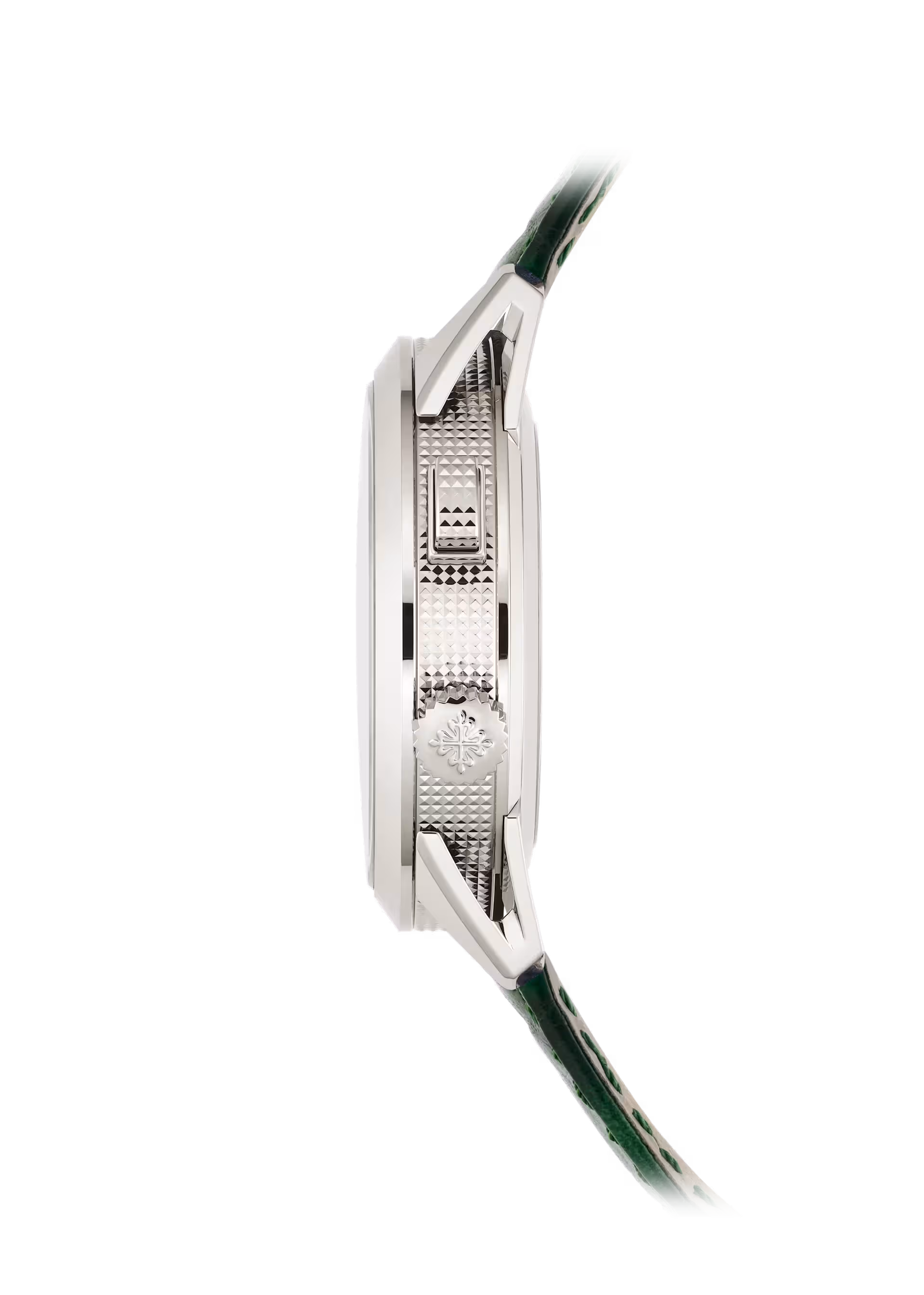

case

White gold
Diameter: 41 mm
Thickness: 12.22 mm
Water-resistant to 30m
Sapphire crystal case back

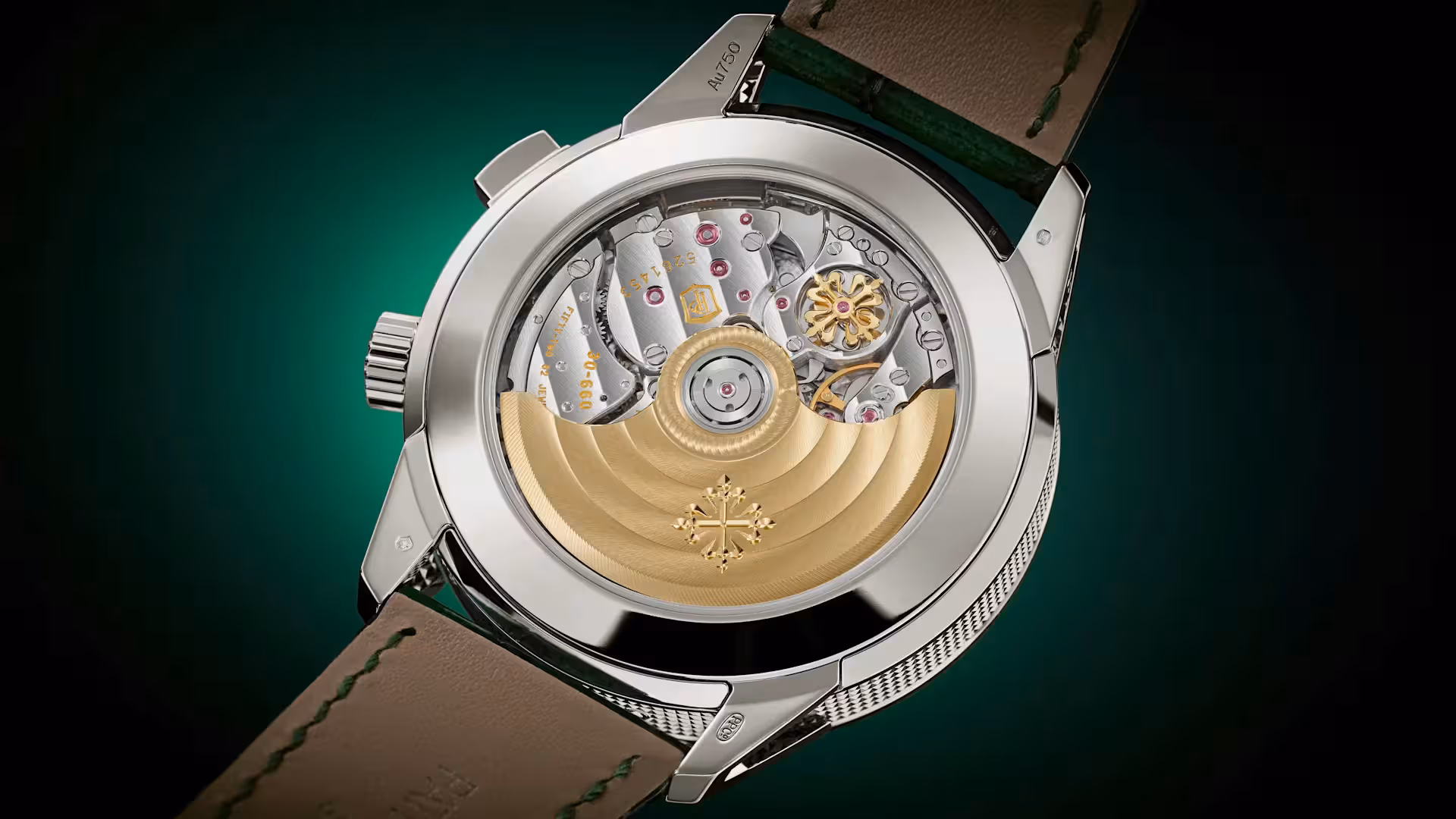

movement

AL 30-660 S C
Self-winding
24-hour alarm with chime on a classic gong
Alarm time displayed in an aperture
Alarm on/off indication in an aperture
Alarm day/night indication in an apertures
Date by hand
Sweep seconds

Diameter: 31 mm
Thickness: 6.6 mm
Number of parts: 524
Number of jewels: 52
Power reserve: min. 42 hours – max. 52 hours
Winding rotor: 21K gold central rotor
Balance: Gyromax®
Frequency: 28,800 semi-oscillations/hour (4 Hz)
Balance spring: Spiromax®
Distinctive sign: Patek Philippe Seal

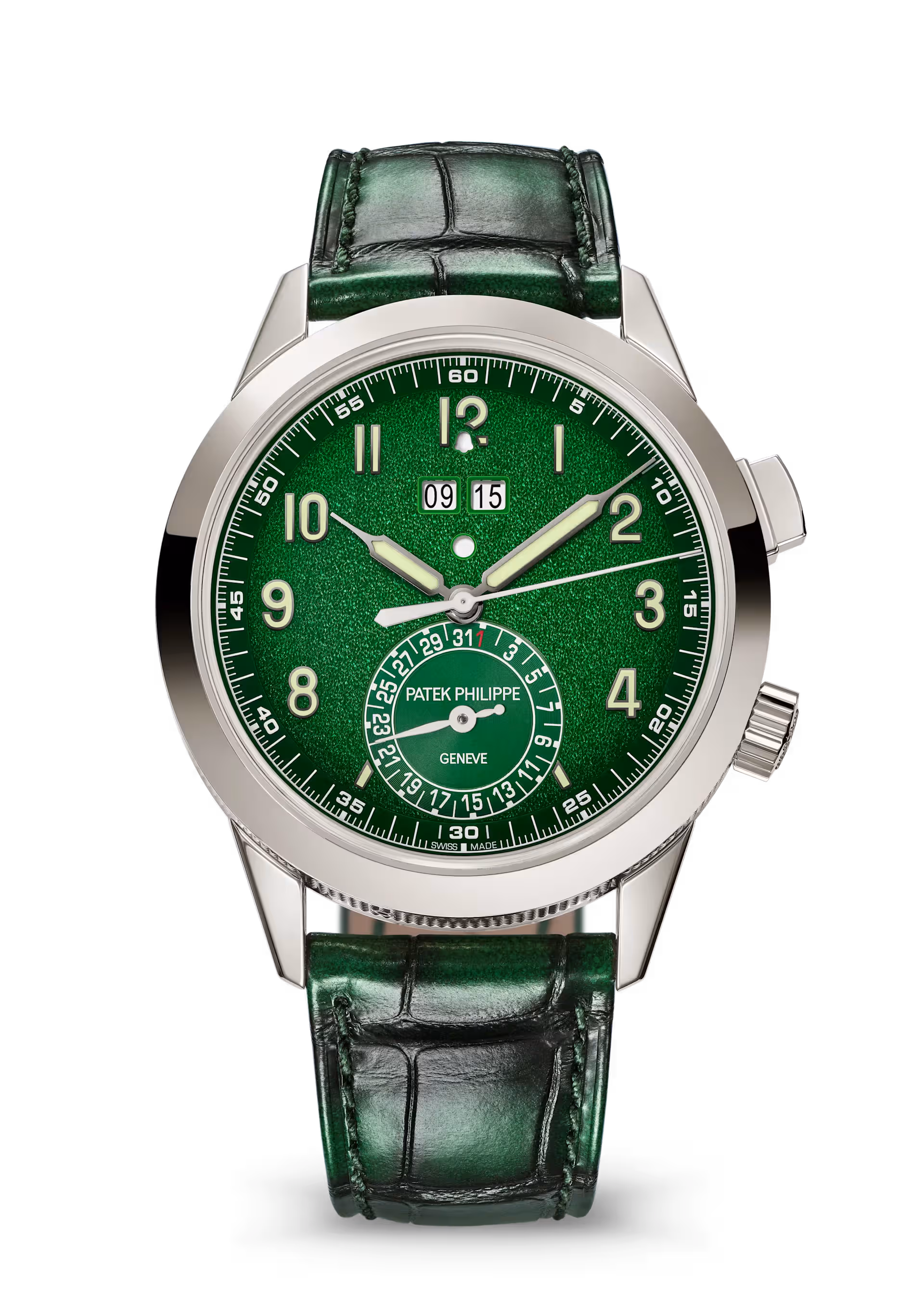

Front

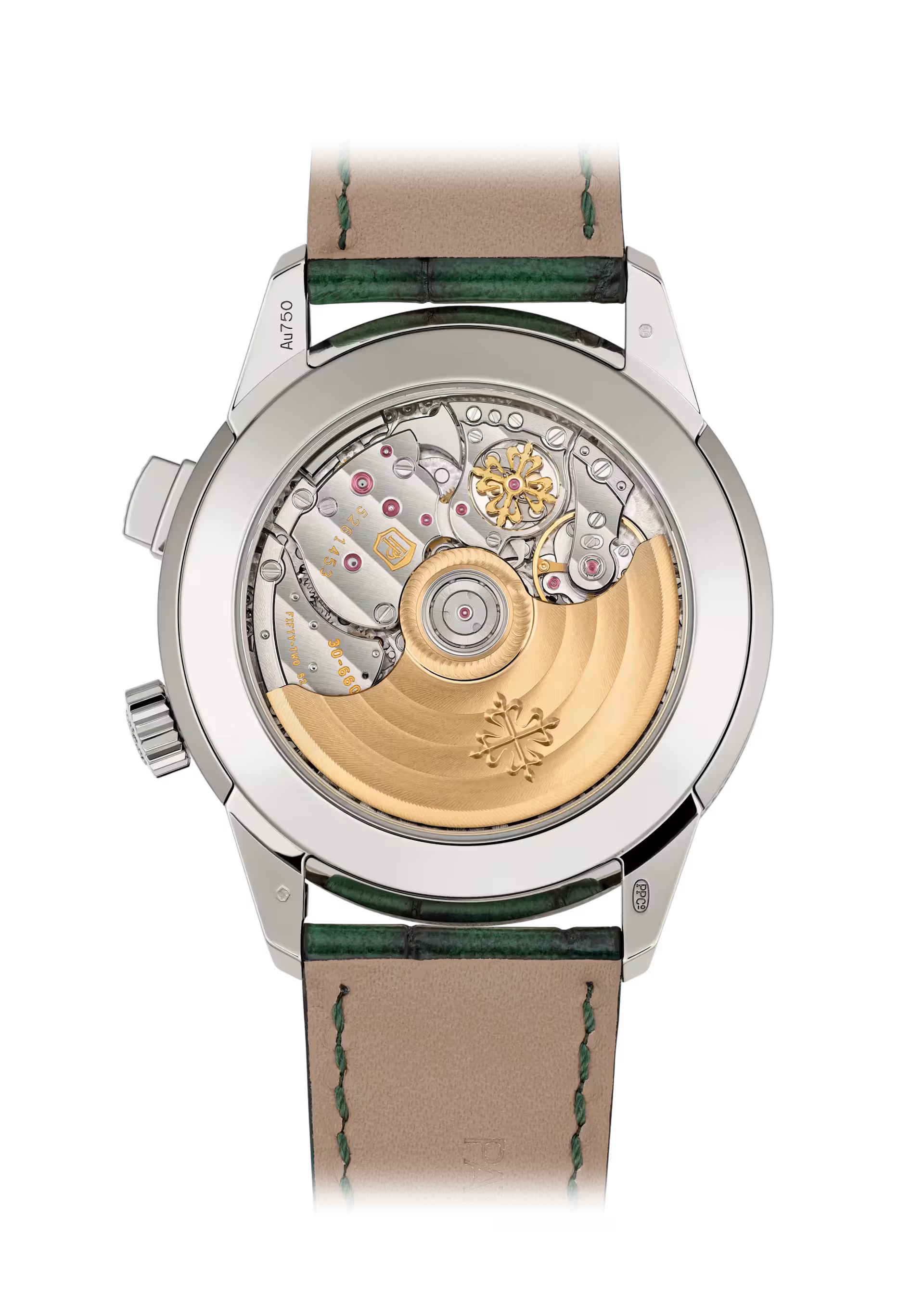

Back
